Specification | ||||||||

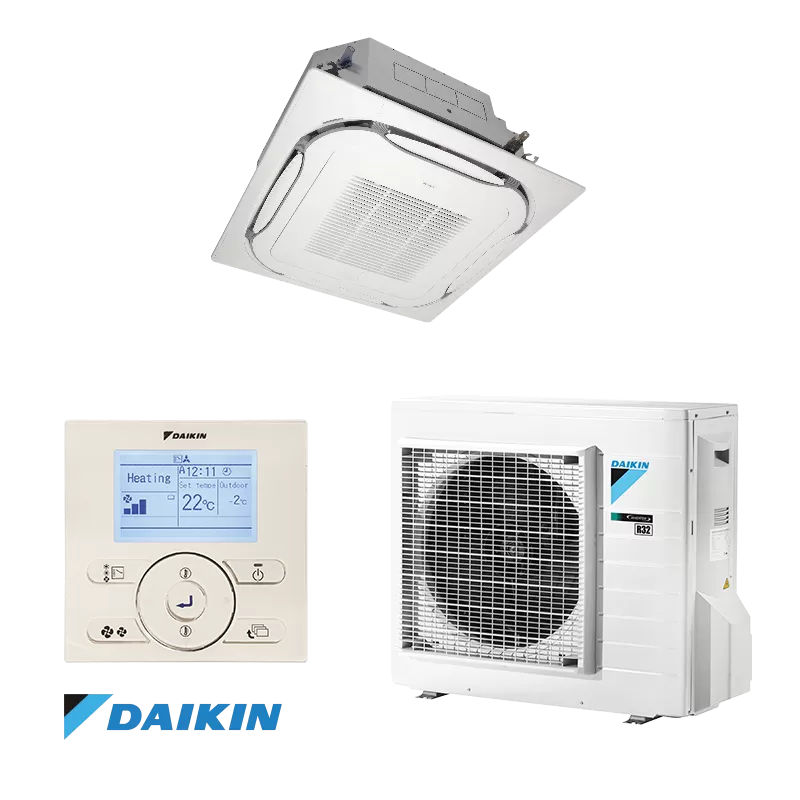

Round Flow Cassette Cooling & heating - 4 Star Inverter R-32 (FCA-Series) | ||||||||
|
| |||||||
| Model | Indoor unit | FCA50AV16 | FCA71AV16 | FCA125AV16 | FCA140AV16 | |||
| Outdoor unit | RZCA50AV16 | RZCA71AV16 | RZCA125AV16 | RZCA140AV16 | ||||
| Remote | Wireless | Optional | BRC91A152 | |||||
| Signal Receiver Unit -Model Number | BRC7M632F-6 | |||||||
| Wired | Optional | BRC1E63 | ||||||
| Panel Code | With Sensing | BYCQ125EAF6 | ||||||
| Power supply | 1 Phase, 230V, 50Hz | 1 Phase, 230V, 50Hz | 1 Phase, 230V, 50Hz | 1 Phase, 230V, 50Hz | ||||
| Cooling capacity -Rated (min ~max) | kW | 5.00 (1.80~5.28) | 7.10 (2.50~8.02) | 12.5 (4.03~13.3) | 14.0 (5.01~14.00) | |||
| Heating capacity -Rated | kW | 5 | 7.1 | 14 | 15.5 | |||
| Power consumption | Cooling-Rated | kW | 1.45 | 1.85 | 4.5 | 5.09 | ||
| Annual Power Consumption | kWh | 808.21 | 1111.35 | 2450.8 | 2787.07 | |||
| ISEER / Stars | Wh/Wh | 4.79/4 | 4.95/4 | 3.95/4 | 3.89/4 | |||
| Indoor unit | ||||||||
| Colour | ------ | |||||||
| Airflow rate (H/HM/M/ML/L) | m3/min | 18.5/17.5/16.5/13.5/11 | 23/21/18.5/16/13.5 | 36.5/33/29/25/21 | ||||
| cfm | 653/618/583/478/388 | 812/742/653/565/477 | 1289/1165/1024/883/742 | |||||
| Sound level (H/HM/M/ML/L) | dB(A) | 41/39/38/35/34 | 41/39/38/35/32 | 46/44/42/39/37 | ||||
| Dimensions (HXWXD) | Unit | mm | 256×840×840 | 256×840×840 | 298×840×840 | 298×840×840 | ||
| Panel | mm | 50×950×950 | ||||||
| Machine weight | Unit | kg | 19 | 22 | 25 | |||
| Panel | kg | 5.5 | ||||||
| Drain | mm | VP25 (I.D. ⌀ 25, O.D. ⌀ 32) | ||||||
| Outdoor unit | ||||||||
| Colour | Ivory White | |||||||
| Compressor | Type | Hermetically Sealed Swing Type | ||||||
| Motor output | kW | 0.92 | 1.1 | 3.3 | 3.3 | |||
| Refrigerant | R32 | |||||||
| Refrigerant charge | kg | 0.72 | 1.2 | 2.9 | 2.9 | |||
| Sound level | Cooling | dB(A) | 52 | 52 | 53 | 53 | ||
| Dimensions (HXWXD) | mm | 595X845X300 | 930×695×418 | 990×940×320 | 990x940x320 | |||
| Machine weight | kg | 28(35) | 47 | 78 | 78 | |||
| Certified operation range | °CDB | -10 Deg C to 52 Deg C | -15 Deg C to 52 Deg C | |||||
| Piping connections | Liquid (Flare) | mm | Ø6.4 (Flare) | Ø9.5 (Flare) | ||||
| Gas (Flare) | mm | Ø12.7 (Flare) | Ø15.9 (Flare) | |||||
| Max. interunit piping length | m | 20 | 30 | 50 | 50 | |||
| Max. installation level difference | m | 16 | 20 | 30 | 30 | |||
Rated cooling capacities are based on the following conditions: Indoor temp., 27°CDB, 19.0°CWB; outdoor temp. 35°CDB. Equiv. refrigeration piping, 7.5 m (horizontal).
Anechoic chamber conversion value, measured according to JIS parameters and criteria. During operation these values are somewhat higher owing to ambient conditions.
Star rating is applicable for single phase units upto a rated cooling capacity of 10,465 Watts as defined by Bureau of Energy Efficiency, Ministry of Power.
